WINCH 10
Power: 120 W
Connectors: 5 Pole XLR (F/M)
Weight: 5,5kg
Lifting capacity: 10 kg (22 lb)
Lifting height: 10 m (32.8 ft)
Lifting speed: 5-30 cm/s (2-11.8 in/s)
winch 10 cable
Power: 120 W
Connectors: 5 Pole XLR (F/M)
Weight: 9,5kg
Lifting capacity: 10 kg (22 lb)
Lifting height: 9,8 m (32.2 ft)
Lifting speed: 5-30 cm/s (2-11.8 in/s)
winch 25
Power: 300 W
Connectors: 5 Pole XLR (F/M)
Weight: 21kg
Lifting capacity: 25 kg (55.1 lb)
Lifting height: 10 m (32.8 ft)
Lifting speed: 5-40 cm/s (2-15.7 in/s)
WINCH 50 DOUBLE
Power: 500W
Connectors: 5 pole XLR (F/M)
Weight: 50KG
Lifting Height: 12.5 m (41.0 ft)
Lifting Capacity: 50kg (110Ib)
Lifting Speed: Variable, 9-45 cm/s (3.5-17.7 in/s)
KINETIC LED BALL
SLICK LITE BEAM
Slick Minibeam is a small, medium-duty, extremely compact trussing system which employs the standard, fork end fitting joint, which is quick and easy to connect with the use of Slick truss pins and conforms to the latest EN and DIN standards. has an impressive strength to weight ratio, being able to typically take 1708kg uniform load on a 10m span.
EUROTRUSS GS
G.S. Truss combines the lateral strength of Minibeam with high vertical loading. It is a 347mm OD square truss and comes in exactly the same lengths as Mini Beam, i.e. metric and imperial modules, and can be adapted to be used along side in certain circumstances. It is widely used in tower applications and can be made into a self climbing tower with the addition of a purpose built steel base unit, head block and a variety of Sleeve Blocks.

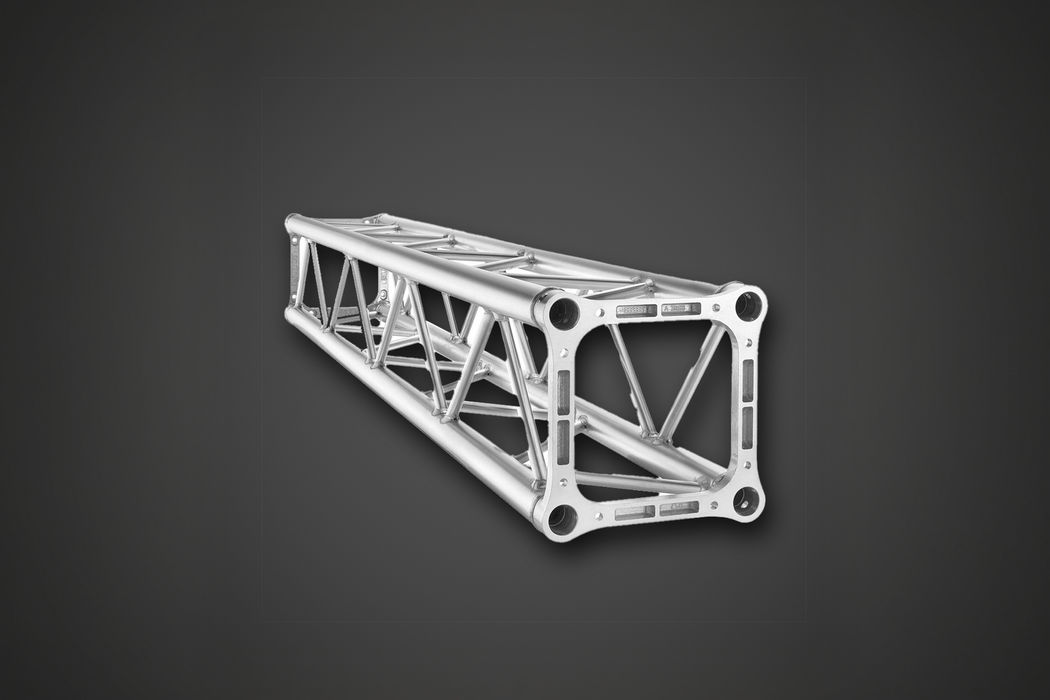

LITEC QX30
Square section aluminium truss twist-resistant version with 29 cm long sides.
Chords A: extruded tube Ø 50 x 2 mm EN AW 6082 T6
Diagonals B: extruded tube Ø 18 x 2 mm EN AW 6082 T6 Ends C: aluminium casting plate EN AC 42200 T6
Connection systems QXFC: quick-fit kit; QXSM10: bolt connection kit
POWER DROP
Compact and reliable Kabuki drop system that drops curtains from a truss to unveil stages, buildings, products or special objects. Also used to unroll flags and banners or open up balloon nets.
Size: (L x W x H) 13,5 x 7,6 x 7,4 cm Weight: 0,9 kg Control: Direct on-off Voltage: 230 Vac 50/60 Hz Power:30 W Capacity: up to 17,5 kg

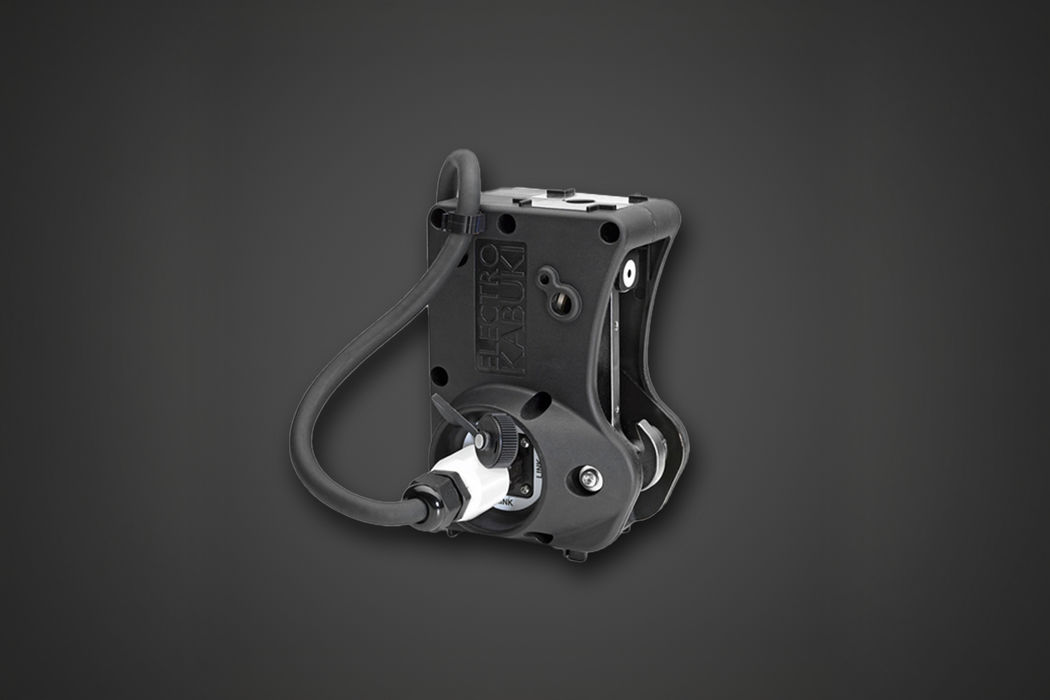

ELECTRO KABUKI
Electro Kabuki is a global high-tech solution to guarantee a faultless reveal or a Kabuki Drop for a live event. This award-winning design will reliably hold up to 50kg per unit. It can be used to drop balloons, backdrops, or cables on cue from a remote position. The load can be released as a vertical drop or angles up to horizontal.
Feature: Fitted with weatherproof AMP CPC Series 1 connectors Power Consumption: 6.6w Weight: 1.4kg
Voltage: 230vac or 110vac (50 or 60 Hz)
Operating cable temp: -5 deg C to + 45 deg C

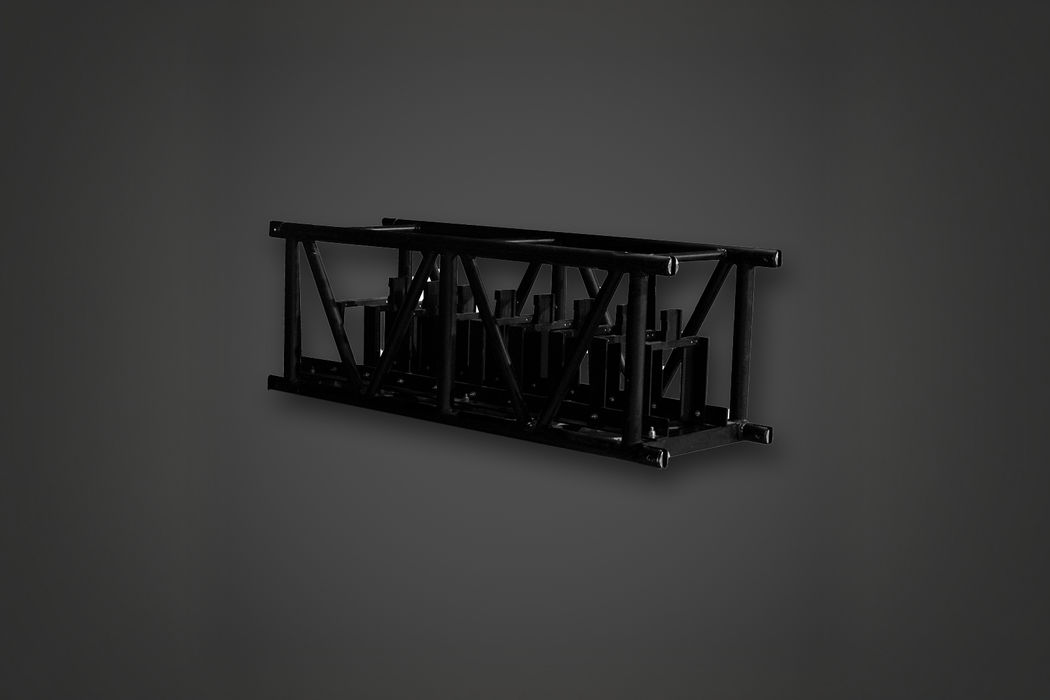

KINEKT RING 1M
Our custom manufactured 1 metre Kinekt Ring is a truss unit designed to hold up to 21 Kinekt units at multiple rigging positions including horizontal and vertical.
KINEKT RING 2M
Our custom manufactured 2 metres Kinekt Ring is a truss unit designed to hold up to 60 Kinekt units at multiple rigging positions including horizontal and vertical.
KINEKT TRUSS 1.4
KINEKT TRUSS 2.8
KINEKT corner block
The Kinekt Corner block allows two pieces of our in house Kinekt pre rig truss to be joined together at varies different angles.
dmx lifting
column
Power: 150W
Connectors: 5 pole XLR, In & Link
Weight: 12kg
Lifting Height: 97cm (81-178cm) (38.2in) (31.9-70.1in)
Lifting Capacity: Pushing up: 60kg (132.3 Ib) Pushing sideways: 10kg Pulling up: Not recommended
Lifting Speed: 0-5,5 cm/s (0-2.2 in/s)
MANFROTTO STANDS
Heavy-duty lighting stand with 370 cm max height. Levelling leg for uneven terrain. Made of durable black chrome steel.
Optional wheels available for increased mobility
base plate single
ER Productions base plate is a heavy duty metal base plate that can support a wide variety of laser and SFX fixtures. Various mounting holes gives wide adaptability for positioning units and gives a solid stable base for all different styles of events and shows.
base plate
double
ER Productions double base plate is a heavy duty metal base plate that can support a wide variety of laser and SFX fixtures. Various mounting holes gives wide adaptability for positioning units and gives a solid stable base for all different styles of events and shows.
